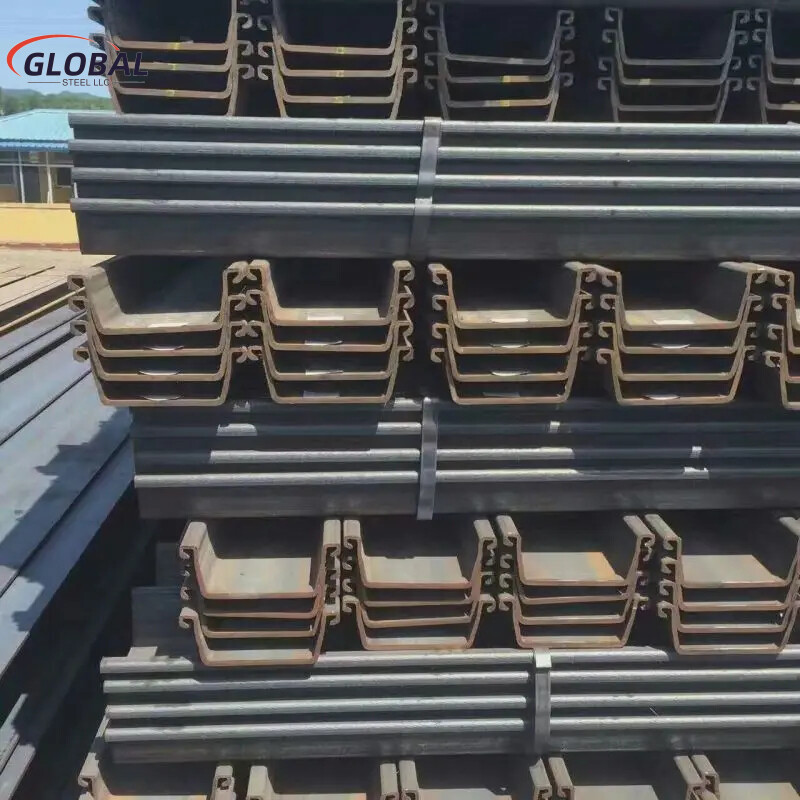

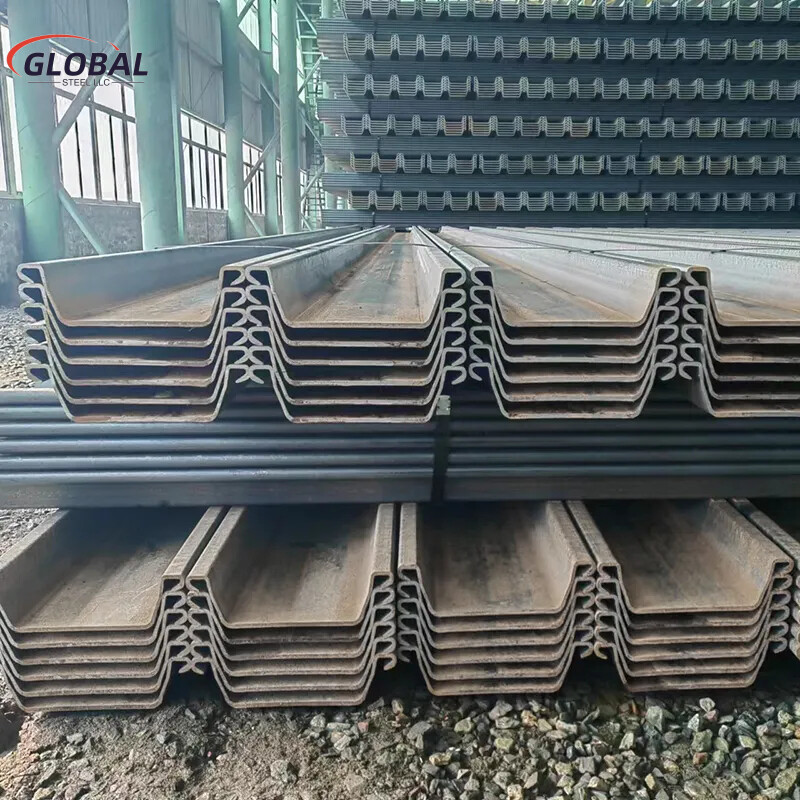

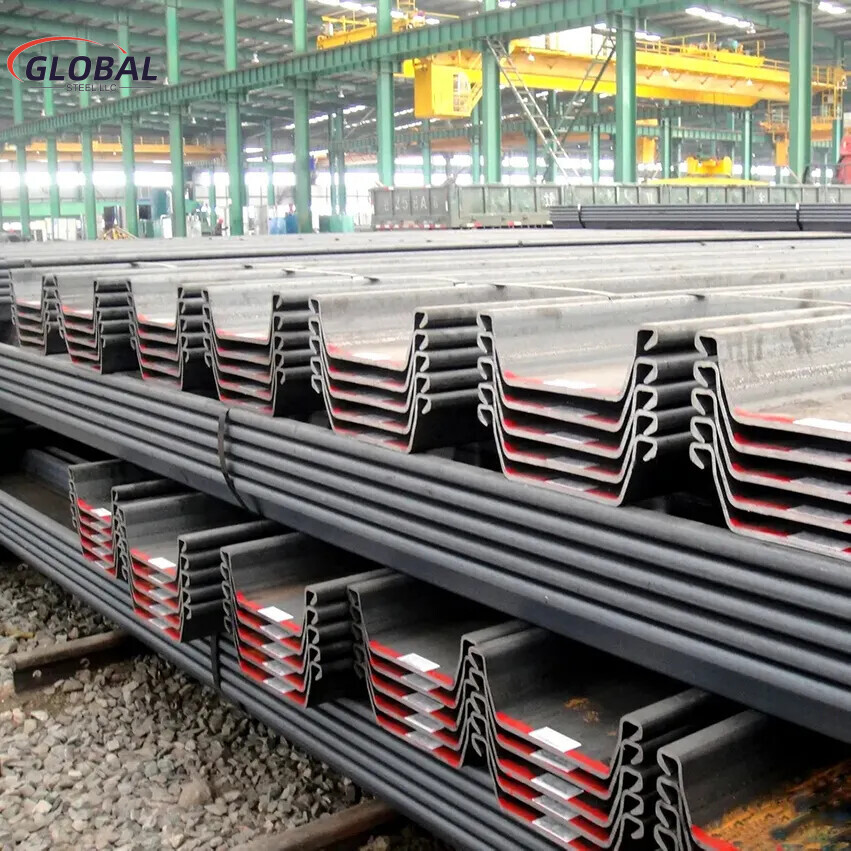

Sheet Pile

Our factory supplies a wide range of hot-rolled steel sections, including H-beams, I-beams, angles, channels, and square bars, offering custom cutting and punching options. Our products are highly robust and dimensionally precise, making them widely used in building structures, bridge construction, machinery frameworks, and industrial supports, ensuring their durability.

+86 15552138899

+86 15552138899

admin@globaltopsteel.com

◉ Product Details

All specifications products can be customized according to customer requirements
Product name	sheet pile
Standard	AiSi, ASTM, DIN, GB, JISEN10249,EN10248,JIS A 5523 and JIS A 5528,ASTM A328 / ASTM A328M,etc
Steel grade	SGCC/SGCD/SGCE/DX51D/DX52D/S250GD/S280GD/S350GD/G550/SPCC,S275,S355,S390,S430,SY295,SY390,Grade50,Grade55,Grade60,A690,etc
Materials	Q234B/Q345B JIS A5523/SYW295,JISA5528/SY295,SYW390,SY390 ect.
Technique	Cold formed interlock or clutches
Certificate	CE, ISO ,etc
Length	9,12, 15 ,20 m as required Max.24m, Any length as customer's request
Width	400-750mm as required
Thickness	6-25mmas required
Shape	U,Z,L,S,Pan,Flat,hat profiles
Package	Bundle in bulk,seaworthy packing or as customer's request
Application	Cofferdam /River flood diversion and control/ Water treatment system fence/Flood protection Wall/Protective embankment/Coastal berm/Tunnel cuts and tunnel bunkers/Breakwater/Weir Wall/ Fixed slope/ Baffle wall, etc.

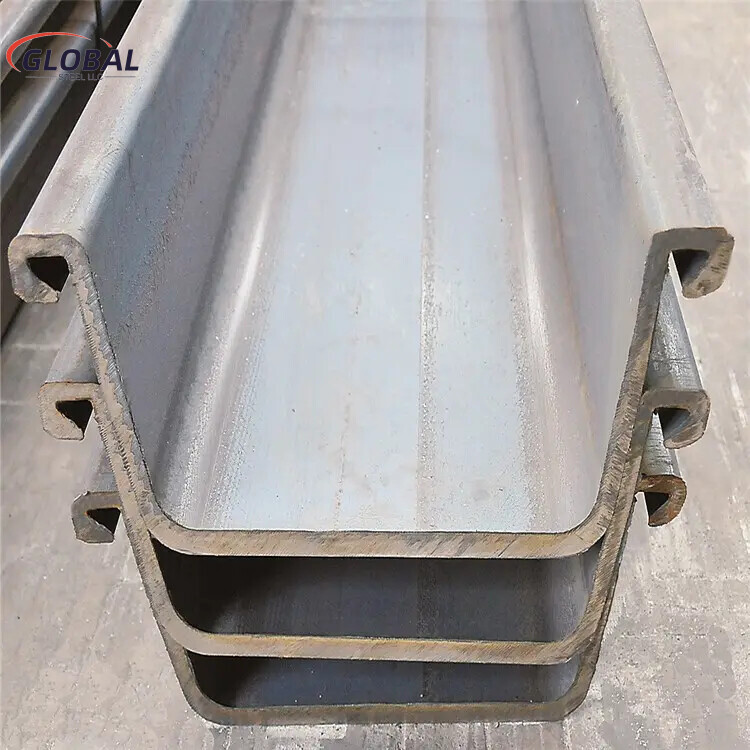

U Type：
Product Model		JU400*100	JU400*125	JU400*170	JU600*180	JU600*205	JU600*210	JU600*226	JU750*225
W(mm)		400	400	400	600	600	600	600	750
H(mm)		100	125	125	170	180	205	210	225
T(mm)		10.5	13	15.5	13.4	10	18	19	14.6
Single Root	cm²	61.18	76.42	96.99	103.9	91.8	135.3	145	140.6
	kg/m	48	60	76.1	81.6	72.1	106.2	114	110.4
	Ix (cm4）	1240	2220	4670	5220	6434	8630	11280	10445
	cm³	152	223	362	376	438	539	649	602
Plate Surface Per Meter	cm²	153	191	242.5	173.2	153	225.5	241.7	187.5
	Kg/cm²	120.1	149.9	190.4	136	120.1	177	190	147.2
	cm4	8740	16800	38600	32400	34645	56700	72320	56301
	cm³	874	1340	2270	1800	1690	2700	3200	2502

Our Advantages :
1. We can produce all types of sheet piles,pipe piles and accessories,we can adjust our machines to produce in any width x height x thickness .
2. We can produce single length up to over 100m,and we can do all painting,cutting,welding etc fabrications in factory .
3. Fully internationally certified:ISO9001,ISO14001,ISO18001,CE,SGS,BV etc..

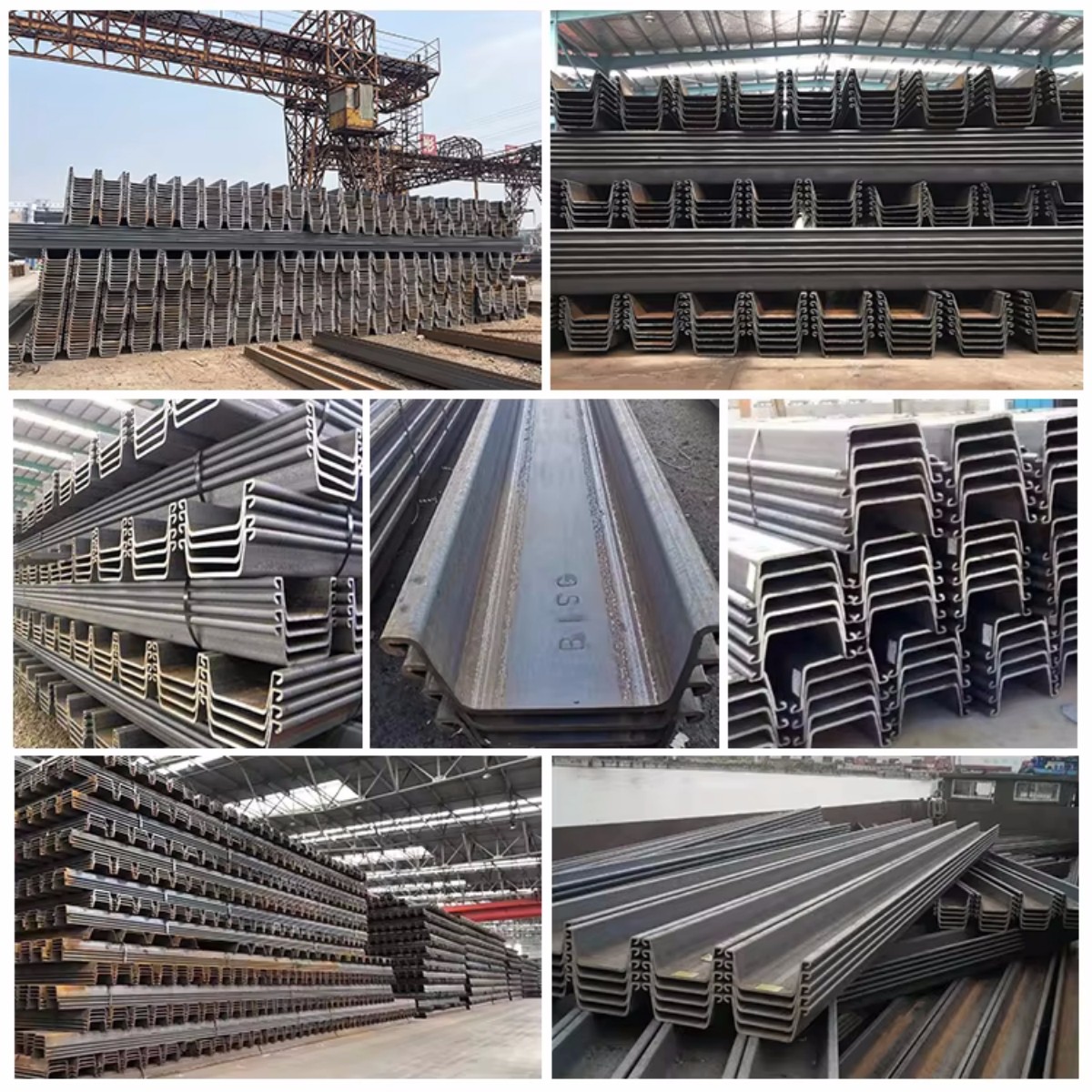

◉ Product Show
